opencvとzbarを用いたQRコードの位置表示について
QRコードを検出するライブラリの一つにzbarがあります。
ZBarのインストール方法とQRコードの位置表示のサンプルプログラムを紹介します。
ZBarのインストール方法
ZBarを使ったバーコード読み取りツールとC/C++ から使う場合に必要なヘッダファイルをインストールします。
sudo apt install zbar-tools libzbar-dev
サンプルプログラム
第一引数に入力された画像を読み込み、その画像にQRコードがあれば位置を表示し、円で囲むサンプルプログラムです。
#include <opencv2/highgui/highgui.hpp> #include <opencv2/imgproc/imgproc.hpp> #include <zbar.h> #include <iostream> using namespace cv; using namespace std; using namespace zbar; void get_qr_location(const Mat& src_, int *qrx, int *qry){ Mat grey; cvtColor(src_,grey,CV_BGR2GRAY); int width = src_.cols; int height = src_.rows; uchar *raw = (uchar *)grey.data; // wrap image data Image image(width, height, "Y800", raw, width * height); // scan the image for barcodes ImageScanner scanner; scanner.set_config(ZBAR_NONE, ZBAR_CFG_ENABLE, 1); int n = scanner.scan(image); // extract results for(Image::SymbolIterator symbol = image.symbol_begin(); symbol != image.symbol_end(); ++symbol) { vector<Point> vp; int n = symbol->get_location_size(); for(int i=0;i<n;i++){ vp.push_back(Point(symbol->get_location_x(i),symbol->get_location_y(i))); *qrx += symbol->get_location_x(i)/n; *qry += symbol->get_location_y(i)/n; } } } int main(int argc, char* argv[]){ Mat src = cv::imread(argv[1],1); int qr_location_x=0, qr_location_y=0; get_qr_location(src,&qr_location_x,&qr_location_y); cout<<qr_location_x<<":"<<qr_location_y<<endl; cv::circle(src,Point(qr_location_x,qr_location_y),100,cv::Scalar(0,255,0),10,1); // resize(src, src, cv::Size(), 0.3, 0.3); imshow("show",src); waitKey(0); return 0; }
ビルドコマンド
g++ main.cpp -o main `pkg-config opencv` `pkg-config --libs opencv` `pkg-config --cflags zbar``pkg-config --libs zbar`

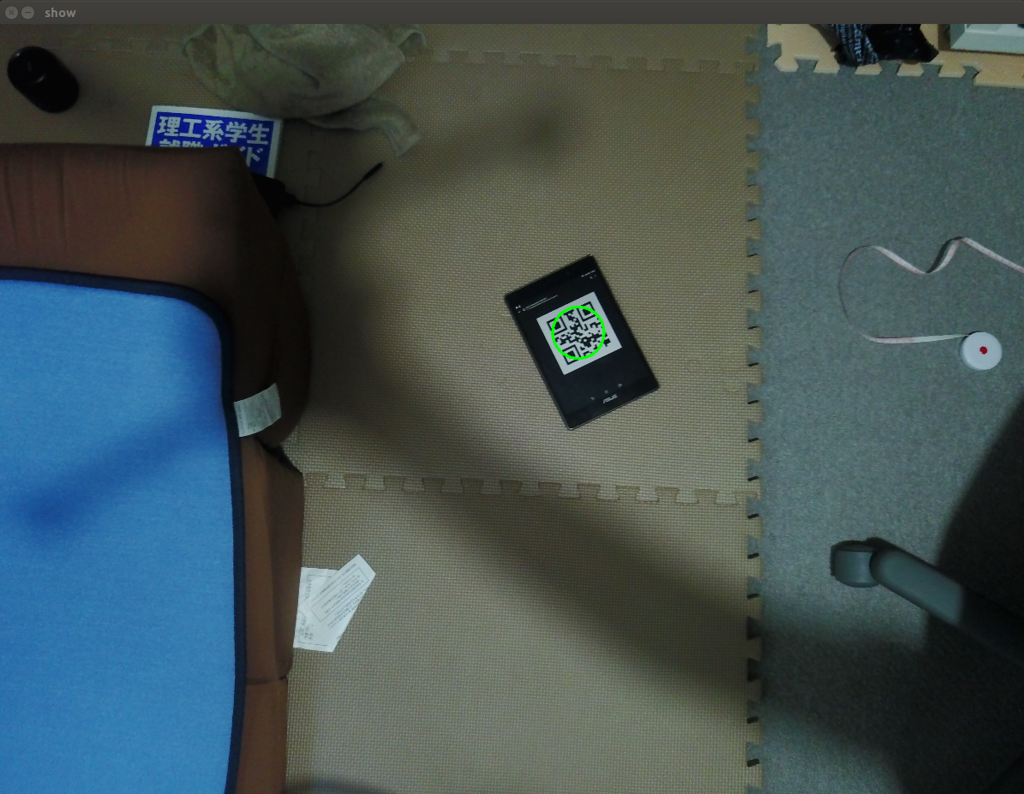

実行結果
